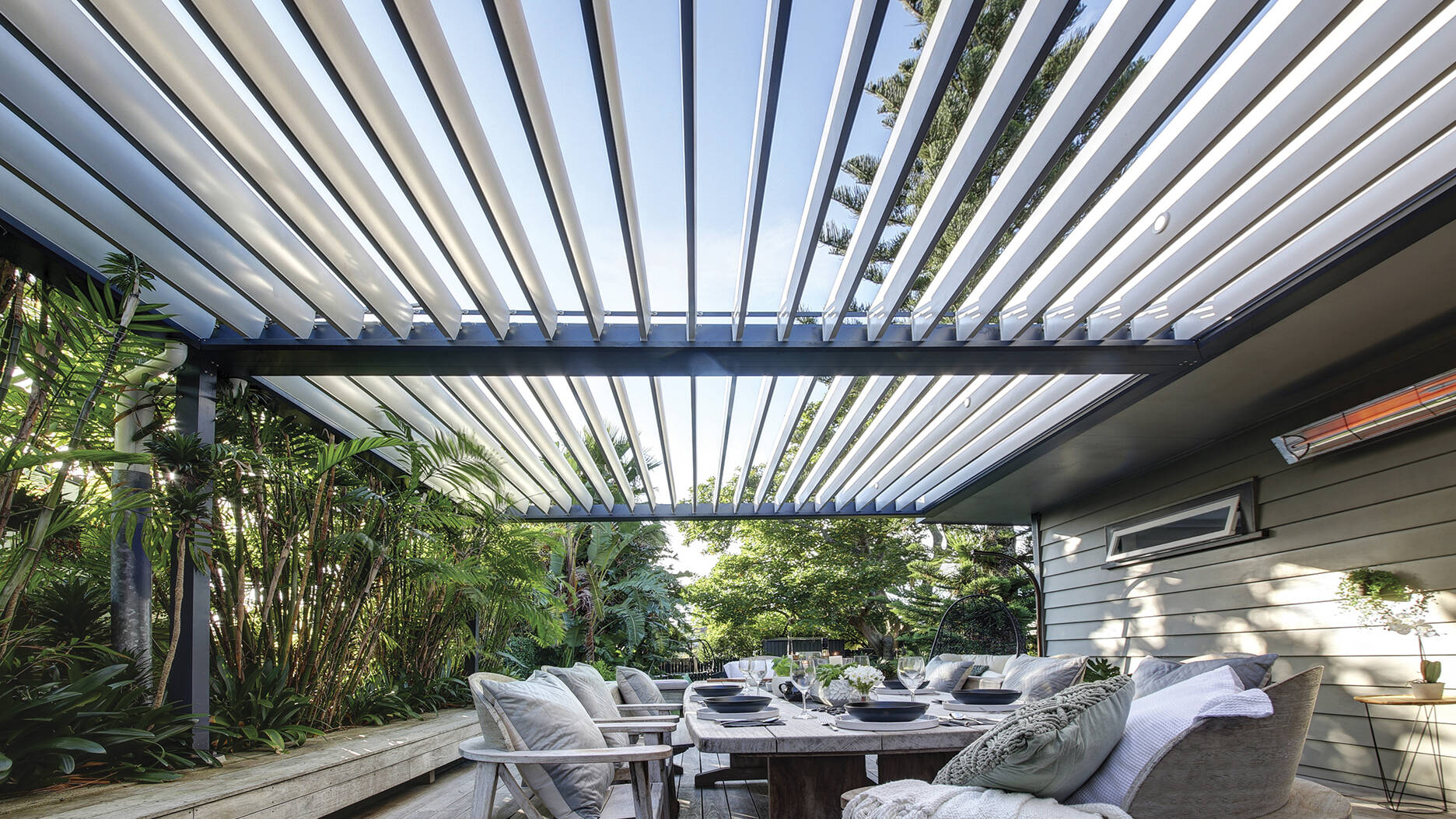

INTRODUCING THE MANSON EXO™ LOUVRE ROOF SYSTEM

Bring the outdoors in at the touch of a button with a New Zealand-made Manson EXO™ Louvre Roof system. Contemporary, sleek, and highly functional, it can be customised to fit any space.

When you specify a Manson Louvre Roof System, you get striking aesthetics and cutting-edge design underwritten by tough, marine-grade durability. Available as a kit set or fully installed, choose the low-maintenance utility of a powder coat or anodised finish, or the textural warmth of woodgrain.

SYSTEM COMPONENTS

BLADES

Waterproof to 10 degrees allowing light to filter in when open, with a sleek tongue-and-groove look when closed. The unique blade design is lightweight and can span up to 3.7m before another bay is required.

Louvre roof blade system

STRUCTURAL FRAME

The framework can be customised to suit any space, with spans larger than 5.6m simply requiring another support or laminated beam. All connections have been engineered to be simple, strong, and discreet. The warranties are thorough on all componentry, with 2 years on all electrical and moving parts, 10 years on all finishes, and 20 years on powder coating.

KEY BENEFITS

  • Easily configured to fit any sized space
  • Generous wide bays of 3.7m and spans of up to 5.6m (single beam) or 7.2m (laminated beam)
  • Rainproof to 10 degrees open, allowing airflow and light in all weather
  • Integrated drainage system and leak-proof gutter
  • IP67 rated actuator for durability
  • Can be fixed to an existing structure or freestanding
  • New Zealand made using highly durable marine-grade materials
  • Meets NZ building codes NZ building codes, including high wind zones


FINISHES

Match any architectural style with powder coat, anodised or wood grain finishes.

POWDERCOAT

WOODGRAIN


ACCESSORIES

Customise the functionality with a range of optional extras.

Louvre roof rain sensors

RAIN SENSORS

louvre roof lighting

LED LIGHTING

FREQUENTLY ASKED QUESTIONS

Yes, our Louvre roof can be custom designed. Manson has an in-house design team for just this purpose. Our sales team will discuss the project with you to understand your required outcomes and get agreement on initial design concepts. Our design team will then prepare you a general arrangement drawing of the design. Once this has been signed off, we can supply a final quote for your job. If a PS1 and engineering calculation are required, we will also include these costs at this stage.

Yes, you can. Our install costs do not include any additional building works that might be required when you do so. We can discuss this with you at the site visit, as different cladding structures have different requirements. Our system can also be installed without fixing to your house.

Each region in New Zealand has different building consent regulations. Most regions allow an opening roof of up to 30 square metres to be installed without the need for consent. We recommend always checking with your local council before ordering a Manson EXO™ Louvre roof.

We offer powder coating, woodgrain finish, or anodised finish. This can all be tailored to your architectural needs. Our pricing includes standard colour powder coating. If you require something different or a specific non-standard colour, we are more than happy to arrange pricing for this.

The Manson EXO™ Louvre roof system is fully motorised and can be opened or closed at the touch of a button. Rain sensors can be added which will automatically close your Louvre roof should precipitation be detected.

Yes. The blades on our Louvre roof system are designed specifically to achieve a watertight finish. The Louvre roof is also rainproof to 10 degrees when open, allowing airflow and light in all weather. N.B. Whilst we take all practical steps to ensure your systems is watertight, under severe weather you may find small amounts of water become present.

All our systems are designed to be low maintenance. Depending on what finish you go for, the maintenance will vary. As a guideline, you should ensure you clean your system every 3 months and remove any dust, salt, dirt, leaves etc from it.

We do offer a kit-set system that comes with a guide for self-installation. However, you will still need to arrange the plumbing, electrical and any additional building requirements with a qualified tradesperson.

The EXO systems are manufactured in our Auckland factory out of highly durable marine-grade materials. We produce high quality, New Zealand-made system, not an imported product that won’t stand the test of time.

Yes. You can have a range of optional extras such as rain sensors, heating, LED lighting, and Audio.

View Louvre Roof Gallery

For more information or detailed design drawings please contact us:

Contact Us

Manson can handle every aspect of your project in house, from design to manufacture and installation. All our staff are specialists in their area, allowing us to handle projects from start to finish and deliver exactly what our customers are after. With 35 years’ experience, we are specialists in providing quality product on time and on budget. We are also strong on health and safety and supply detailed warranties and paperwork to ensure a timely warranted consent process.
